Specifiche
tecniche:

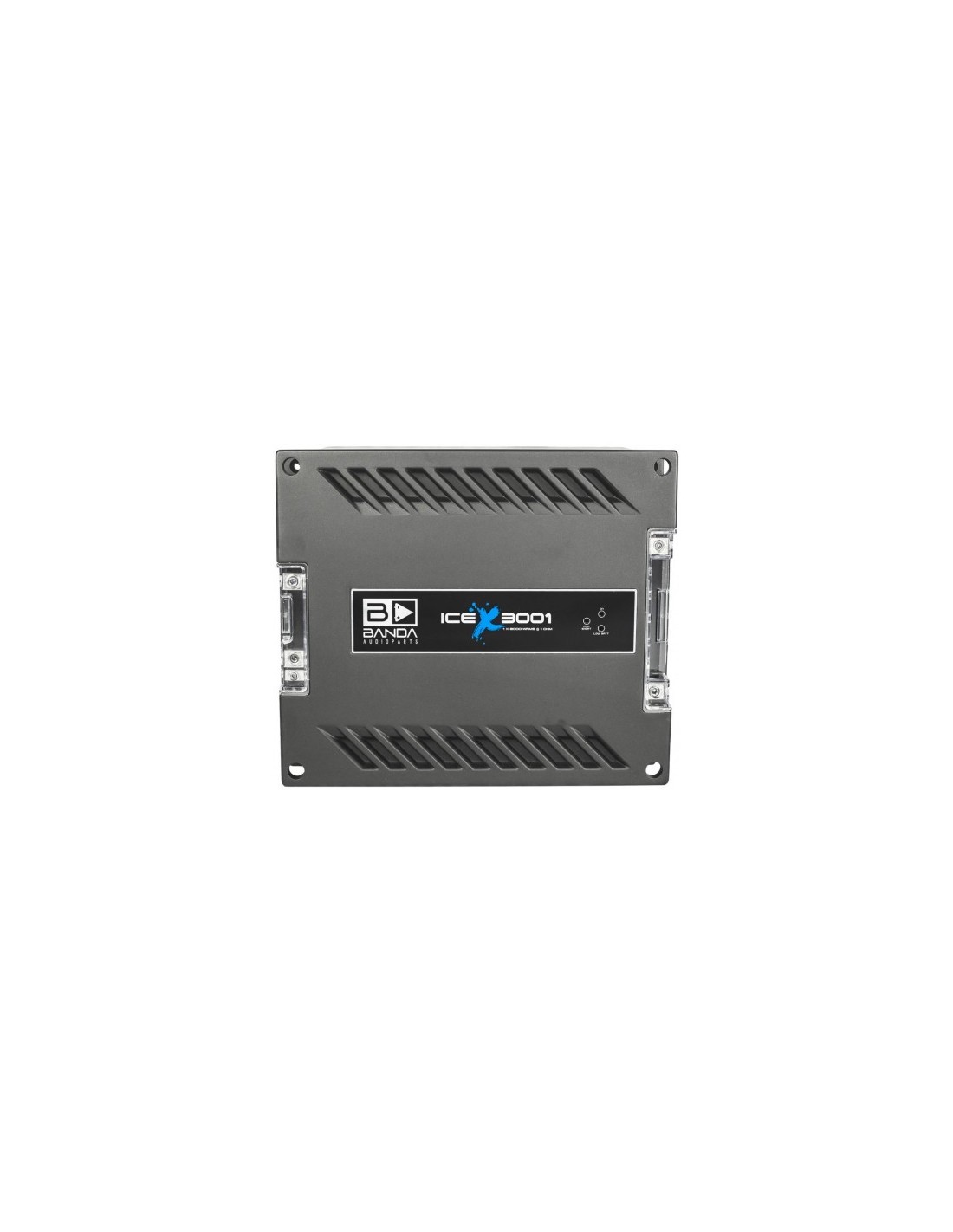

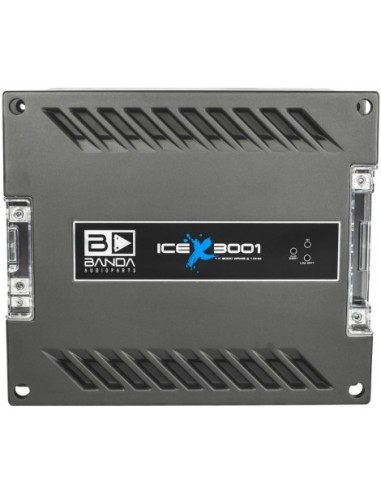

Banda ICE X 3001
Total Power 14,4 @ 1 Ohm 3600 WRMS
Total Power 14,4 @ 2 Ohm 2400 WRMS
Total Power 12,6 @ 1 Ohm 3000 WRMS
Total Power 12,6 @ 2 Ohms 1800 WRMS
Efficiency @ 2 Ohms 82%
Efficiency @ 1 Ohm 75%
Input Voltage 9 – 15V
Input Impedance 100K Ohms
THD+Noise <1%
Input Sensitivity 110mV – 8V
SNR 82dB
Frequency Response (Key OFF) 5 to 22kHz (-3dBs)
Frequency Response 20 to 20kHz (-3dBs)
Bass Bosst @ 45Hz Variable 0 to +18dBs
HPF (High Pass Filter) 20 to 80Hz @ 12dB/octave Linkwitz-Riley
LPF (Low Pass Filter) 80 to 20kHz @ 12dB/octave Linkwitz-Riley
Recommended Fuse 150 A
Current at Rest 2 A
Average Current Draw (Sinusoidal) 320 A
Average Current Draw (Music) 160 A
Power Wire Gauge (min. Recommended) 21mm / 4 AWG
Speaker Wire Gauge (min. Recommended) 2 x 4mm / 2 x 11 AWG
- Tipo
- Amplificatore
- Potenza Max
- 6000w
- Canali
- 1
- Classe
- D full range
- Potenza RMS 2 Ohm
- 2400
- Potenza RMS 1 Ohm
- 3600
